DIN1.2379 D2 SKD11 Hot Rolled Forged Cold Work Mould Steel bar
D2 Tool Steel is a versatile high-carbon, high-chromium, air-hardening tool steel that is characterized by a relatively high attainable hardness and numerous, large, chromium-rich alloy carbides in the microstructure. These carbides provide good resistance to wear from sliding contact with other metals and abrasive materials.
1. Chemical composition(%):
| C | Cr | Mn | Mo | Si | V | P | S |
| 1.4-1.6 | 11-13 | 0.3-0.5 | 0.7-1.2 | 0.30-0.5 | ≤0.8 | ≤0.025 | ≤0.025 |
2. Available size(mm):
| Flat Bar Size(mm) | Round bar Size(mm) |
| Thickness | Width | Length | Diameter | Length |
| 10-200 | 155-810 | 2000-6000 | 20-200 | 3000-6000 |
3. Recommend heat treatment:
| Quenching | Tempering |
| Heating temperature/ºC | Cooling way | Hardness (HRC) | Tempering temperature
/ºC | Tempering number | Hardness
(HRC) |
| First preheating | Second preheating | Last heating |
| 600-650 | 800-850 | 1020-1040 | Air Cooling | 61-63 | 500-560 | 2 | ≥58 |
4. Features:
a. Good processing, heat treatment size stability.
b. Excellent machinability.
c. Excellent dimensional stability when hardened.
d. After hardening and tempering, the high surface hardness match well with the toughness of the body.
5. Application:
For metal stamping die, drawing die, stainless steel sheet punching die, high hardness punching die, cutting knife mold, Roll Die, metal parts production, machinery manufacturing etc.
6. Delivery condition:
Surface: Grinding surface, black surface, turned surface and milling surface according to customer's requirements.
For abundant stock, 15-20 days.
For customized products, 30-50 days.
7. Terms of payment: 30% deposit T/T and the balance by L/C at sight, or T/T
8. Packing: We provide Standard export packing or according to customers' request.
FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are trading company act as exporting Steel Products with our own factory,
we can manufacture the products as in cutomer's requirement,wholesale and retail all kinds of domestic mould steel,the price we offered is very competitive compared with other agents.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as SGS, CE,ISO if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival. Third,the products we export are mainly from ShaGang group, WenFeng group, XingCheng group, DongTe group,DaYe and so on, the quality are certained.
Q: What is the payment term?
A:100% T/T or 30%T/T deposite prepaid, 70%Balance L/C
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 30-50 days after receiving your prepayment or firm order.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.

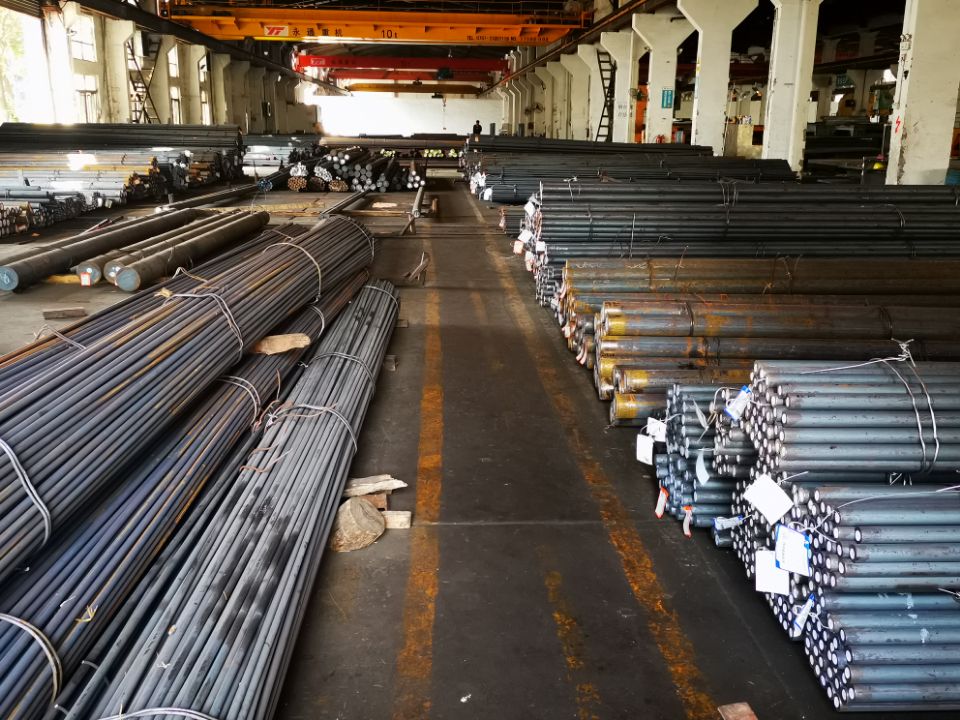

Warehouse:
|
|
DIN1.2379 D2 SKD11 Hot Rolled Forged Cold Work Mould Steel bar Images
|
